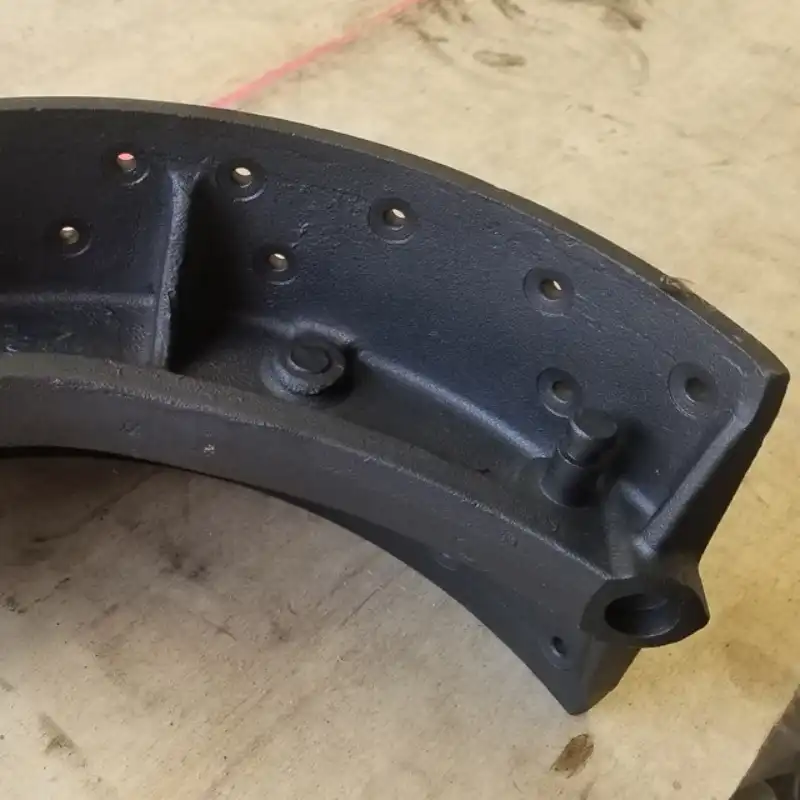

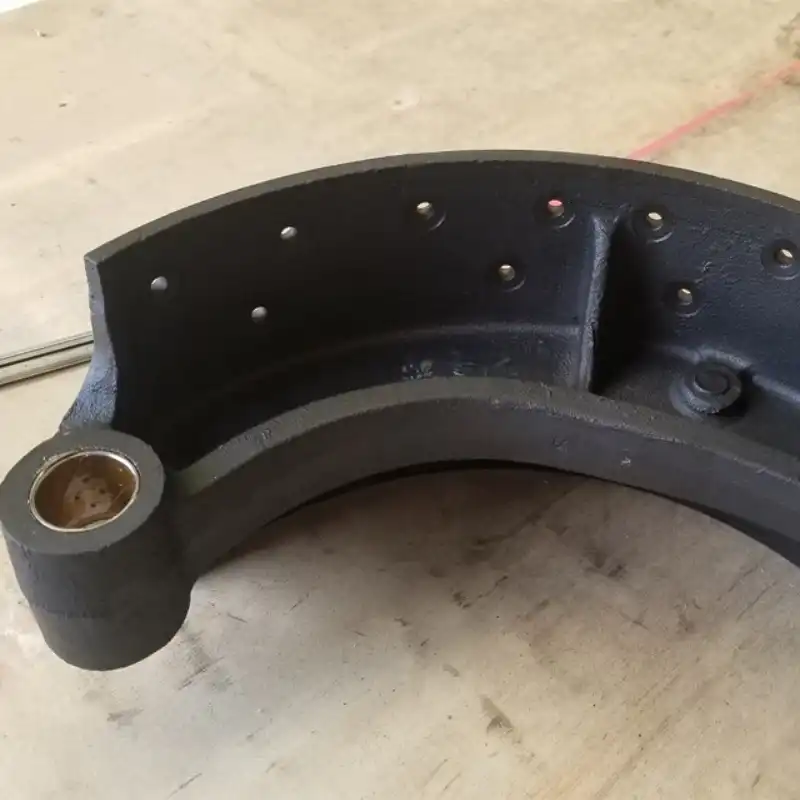

CAST IRON BRAKE SHOE 47431-1480 FOR HINO OIL TRUCK – 6.5 INCH REPLACEMENT SHOE
The brake shoe 47431-1480 is a direct replacement cast iron shoe for Hino oil trucks running oil-cooled drum brake systems. Machined to the same width, arc profile and rivet pattern as the genuine Hino component, it installs as a bolt-in fit with no grinding, no re-drilling and no adapters. At 6.5 inches wide with 24 lining holes and a solid 7.0 kg body, this shoe is built to carry the stopping loads of fully loaded Hino trucks on highway, quarry, plantation and oil field duty. It is exported in wooden boxes to workshops, fleet operators and parts traders across Southeast Asia, Africa, Russia and the Middle East.
SPECIFICATIONS OF THE HINO 47431-1480 BRAKE SHOE

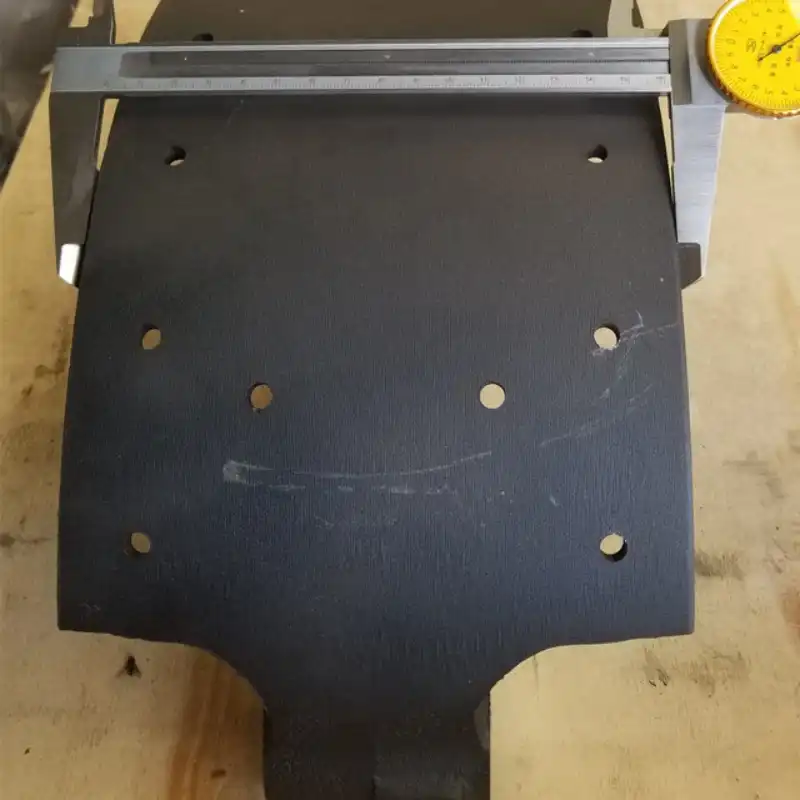

Original equipment number 47431-1480, also stamped 474311480. Product type: brake shoe assembly for oil-cooled drum brake systems. Shoe material: high-grade cast iron. Shoe width: 6.5 inches (165 mm). Lining fixing holes: 24. Single shoe weight: 7.0 kg. Surface finish: machined and cleaned, ready for lining riveting. Packaging: wooden box. Stock status: in stock. Every specification is checked against original Hino drawings before each production run, so batch-to-batch consistency is maintained for workshop chains and volume buyers.
FITMENT – WHICH HINO OIL TRUCKS USE THIS 6.5 INCH SHOE
This shoe is the 6.5 inch oil brake version of the Hino brake range, used on Hino oil trucks, including models in the Hino 700 series fitted with the K13C engine. Related 6.5 inch Hino shoe numbers share the same width and 24 hole pattern, so buyers managing a mixed fleet can consolidate several shoe numbers in one purchase. Because final fit depends on axle position, brake size and hole layout, always compare the OE number, shoe width and hole count stamped on the shoe being replaced. Matching those three points guarantees a correct fit on the first attempt.
WHAT MAKES CAST IRON THE RIGHT MATERIAL FOR TRUCK BRAKE SHOES
Unlike stamped and welded steel shoes, a cast iron shoe is formed as a single solid piece, free of weld seams and weak joints. That one-piece body gives the shoe uniform rigidity, so it holds its arc against the drum under heavy braking instead of flexing and losing contact. Heat from repeated stops spreads evenly through the casting, which keeps the lining seated firmly and keeps stopping distances consistent on long downhill runs. The 7.0 kg weight places this shoe in the same class as the genuine Hino part, giving installers the solid, substantial feel they expect from an OE-grade component rather than the light body of economy copies.
PRECISION MACHINING FOR EVEN WEAR AND BALANCED STOPPING
The performance of a brake shoe depends on how accurately it matches the drum. This shoe is machined so the outer arc, inner radius and locating slots stay within original equipment tolerances, allowing the lining to make even contact across the full width of the drum. The 24 drilled rivet holes follow the original pattern, so the friction lining can be fixed securely and will not shift under heat or vibration. Even contact means balanced braking, even lining wear and longer drum life, which cuts downtime and maintenance cost for fleets that work hard every day.
WOODEN BOX EXPORT PACKING FOR LONG DISTANCE SHIPPING
Cast iron shoes are heavy, and rough handling in transit is the most common cause of damage. Every order is packed in a sturdy wooden box, with the shoes braced so they cannot slide or knock against each other during sea freight, container loading and overland transport. The boxes stack cleanly in warehouse and container loads and are simple to open and count on arrival. For regular volume buyers, packing can be arranged to your loading plan, and several Hino brake shoe numbers can be consolidated into one case to save freight cost.
IN STOCK NOW – SAMPLE ORDERS WELCOME
Stock of this brake shoe 47431-1480 is available now, so normal orders are packed and dispatched without waiting for production. Before committing to a volume order, you are welcome to request a sample to confirm the material, dimensions, hole pattern and overall workmanship first. To request a sample, please send us the sample quantity you need, the sample OEM number 47431-1480, your shipping address together with the postal code, and your WhatsApp contact number. Our sales team will reply with the sample price, freight quotation and delivery time, and dispatch as soon as your sample order is confirmed.
