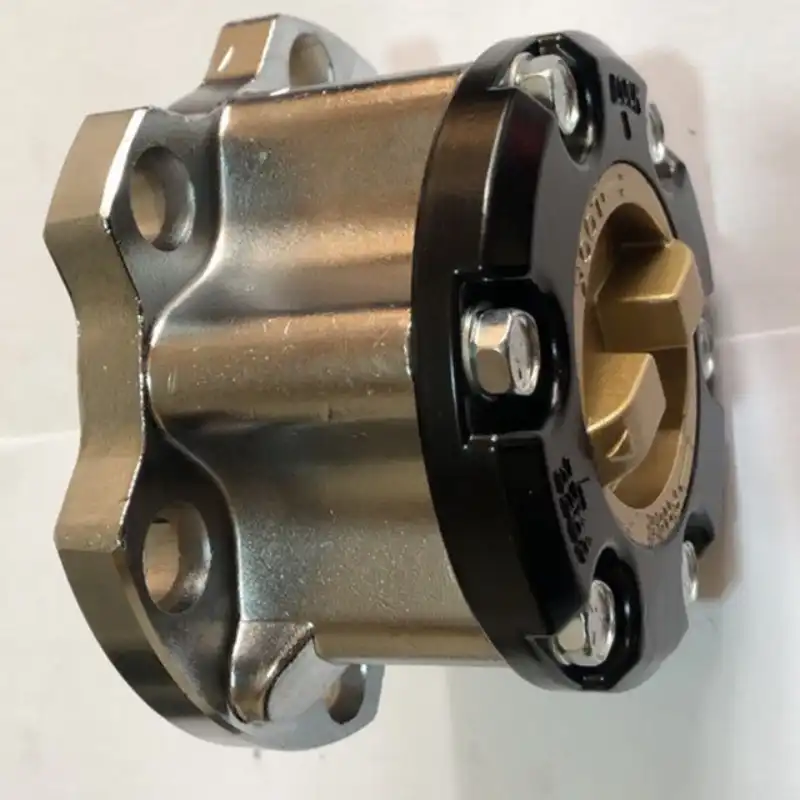

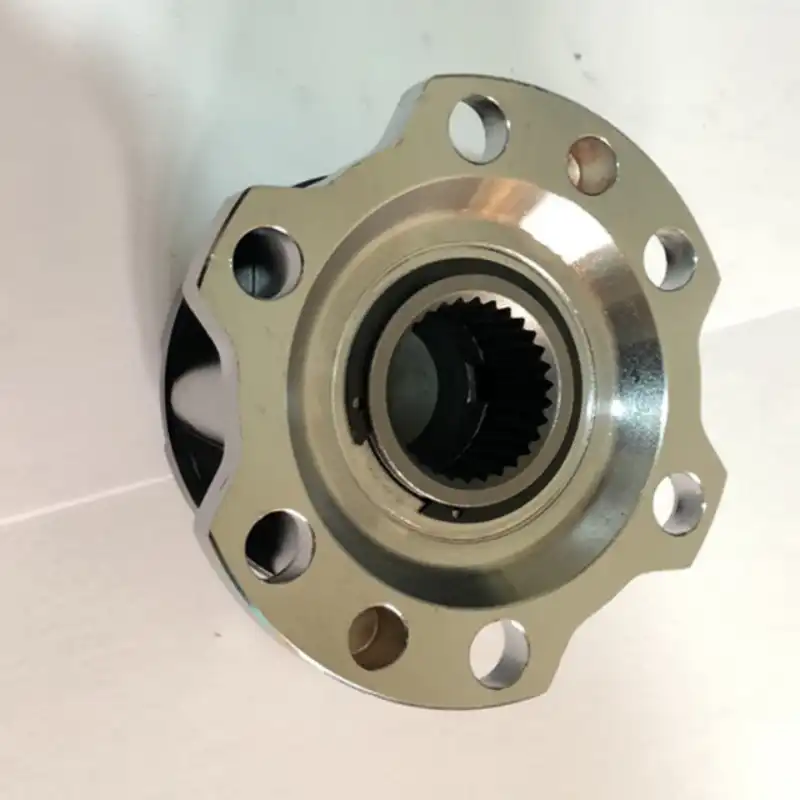

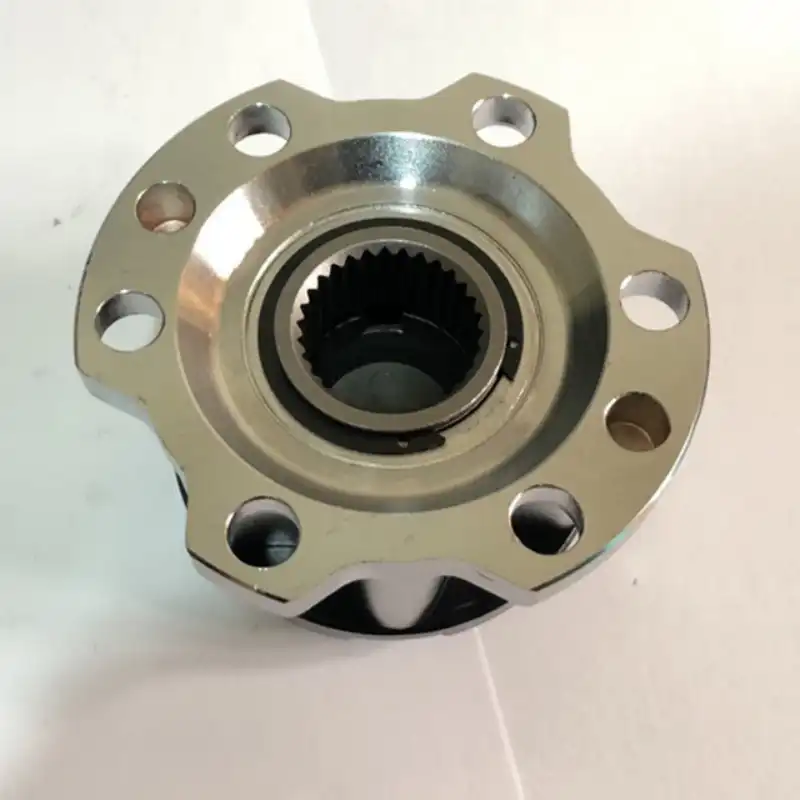

Free Wheel Hub 43530-60130 for Toyota Land Cruiser FJ100 FZJ105 HZJ105
Direct OEM Replacement for Toyota Land Cruiser 100 Series
The 43530-60130 Free Wheel Hub is a precision-engineered manual locking hub designed as a direct bolt-on replacement for the Toyota Land Cruiser 100 Series, including FJ100, FZJ105, and HZJ105 models. It is also fully compatible with the Land Cruiser 70 Series (75, 76, 78, 79) and 105 Series variants equipped with factory free wheel hubs. This component allows 4×4 drivers to manually engage or disengage the front axle from the wheel assembly, reducing drivetrain drag, improving fuel economy, and extending CV joint and differential service life during on-road driving.
Manufactured from high-grade zinc alloy, this free wheel hub delivers exceptional tensile strength and corrosion resistance, making it ideal for heavy-duty off-road use across diverse terrains — from African savanna trails to Southeast Asian jungle tracks. The 30-tooth spline ensures precise engagement with the axle shaft, eliminating play and delivering consistent torque transfer under load.
Key Specifications
Material, Spline Count & Dimensions
Specification
Detail
OEM Part Number
43530-60130 / 4353060130
Material
High-Grade Zinc Alloy
Spline Count
30-Tooth (30 Spline)
Product Type
Manual Free Wheel Locking Hub
Position
Front Left / Front Right
Fitment Type
Direct OEM Replacement
Package Content
1 Piece per Box
Packaging
Neutral Paper Box (Default) / Custom Color Box Available
Additional Technical Details
Corrosion Resistance: Zinc alloy composition provides superior protection against rust and oxidation in humid, coastal, and muddy environments.
Machining Precision: CNC-machined spline teeth ensure seamless mating with the axle shaft — no grinding, no premature wear.
Gasket Included: Each unit comes with a pre-installed sealing gasket to prevent water, dust, and debris ingress.
Vehicle Compatibility
Models That Fit 43530-60130
Series
Compatible Models
Year Range
Land Cruiser 100 Series
FJ100, FZJ105, HZJ105, HDJ100, UZJ100
1998 – 2007
Land Cruiser 70 Series
HZJ75, HZJ76, HZJ78, HZJ79
1999 – Present
Land Cruiser 105 Series
FZJ105, HZJ105 (Solid Front Axle)
1998 – 2007
Note: This free wheel hub is designed for vehicles originally equipped with manual locking hubs. For full-time 4WD 100 Series models converting to part-time 4WD, a conversion kit (sold separately) is required.
Features & Benefits
Why Choose Our Free Wheel Locking Hub
Heavy-Duty Zinc Alloy Body — Unlike budget steel or plastic-core alternatives, our zinc alloy hub body withstands extreme torque loads without cracking or deformation, ensuring reliability in rock crawling, sand dune driving, and mud recovery scenarios.
30-Tooth Precision Spline — Each tooth is CNC-machined to exact OEM tolerance. The tight fit eliminates backlash, reduces spline wear, and provides smooth engagement every time you turn the dial.
Direct Fit — No Modification Required — Designed to factory dimensions. Simply remove your worn or damaged hub and bolt this replacement unit directly onto the existing stud pattern. Average installation time: under 30 minutes per side with basic hand tools.
Corrosion-Proof Performance — Zinc alloy naturally resists oxidation. Combined with the integrated rubber sealing gasket, this hub stays functional even after repeated river crossings, monsoon-season driving, and salt-laden coastal exposure.
Verified OEM Cross-Reference — Directly replaces Toyota part numbers 43530-60130 and 4353060130. Also cross-references with AISIN FHT-013 and various aftermarket equivalents. No guesswork — guaranteed fit.
Fuel Economy & Drivetrain Longevity — By disengaging the front drivetrain during highway cruising, manual locking hubs reduce parasitic drag. Drivers report fuel savings of 5–10% and significantly extended CV joint, differential, and front driveshaft service life.
Packaging & Shipping
Neutral Box and Custom Color Box Options
Every 43530-60130 Free Wheel Hub is carefully inspected before dispatch and packed to prevent transit damage.
Standard Packaging: Individual neutral white/ kraft paper box printed with part number and basic specifications. Ideal for workshops and distributors who repack under their own brand.
Custom Color Box: Available upon request — we can produce branded retail-ready packaging with your logo, color scheme, and product information. Minimum order quantity applies for custom boxes. Contact us with your artwork or packaging requirements.
Bulk Packaging: For large-volume wholesale orders, master carton packing with protective foam dividers is available to reduce per-unit freight cost.
In Stock: This product is maintained in regular inventory. Standard orders ship within 1–3 business days after payment confirmation. Urgent orders can be expedited upon request.
How to Order Samples
Request Your Free Wheel Hub Sample
Samples are available for quality evaluation and fitment verification before placing a bulk order. To request a sample, please send the following information via WhatsApp:
Sample Quantity: Number of pieces required
OEM Part Number: 43530-60130 (or your target OEM number if different)
Delivery Address: Full shipping address including street, city, state/province, and postal/ZIP code
Contact Person: Name and WhatsApp number of the recipient
We will respond with a sample quotation including unit price, shipping cost, estimated delivery time, and payment instructions. Sample shipping is typically arranged via DHL, FedEx, UPS, or EMS based on your location.
For urgent sample requests or volume inquiries, reach out directly via WhatsApp — we respond within 2 hours during business hours (UTC+8).
Frequently Asked Questions
Is this hub compatible with my vehicle?
The 43530-60130 fits all Toyota Land Cruiser 100 Series and 105 Series models originally equipped with manual locking hubs, plus 70 Series models from 1999 onward (HZJ75, HZJ76, HZJ78, HZJ79). If your vehicle has full-time 4WD with drive flanges, a part-time conversion kit is required. Send us your chassis number or a photo of your current hub for confirmation.
What material is this free wheel hub made of?
Zinc alloy — chosen for its optimal balance of strength, weight, and corrosion resistance. It outperforms cast iron and stamped steel alternatives in durability and weatherproofing.
Do you offer a warranty?
Yes. All our free wheel hubs come with a 12-month warranty against manufacturing defects under normal use conditions. Warranty does not cover damage resulting from improper installation, collision impact, or use beyond the product’s rated load capacity.
Can I get custom branding or packaging?
Absolutely. We support OEM/ODM services including custom logo engraving, branded color boxes, and tailored packaging solutions. Please contact us with your requirements and target order quantity for a customized quotation.
What is the minimum order quantity (MOQ)?
Sample orders start from 1 piece. For wholesale orders, MOQ is negotiable — contact us with your target quantity and destination port for the best pricing.
How long does shipping take?
Standard air express (DHL/FedEx/UPS) delivers to most destinations in 3–7 business days. Sea freight is available for bulk orders with estimated transit times of 15–40 days depending on the destination port. We ship from our warehouse in Qingdao, China.
Looking for other free wheel hub part numbers? We stock a full range of Toyota, Nissan, Mitsubishi, and Isuzu locking hubs. Send us your OEM number for a quick quote.
